COMPANY INFORMATION

TRANSFORMATÖR ELEKTROMEKANİK SAN. TİC.A.Ş (BETA)


Name

TRANSFORMATÖR ELEKTROMEKANİK SAN. TİC.A.Ş (BETA)

Address

Hacı Sabancı OSB Çanakkale Cd. No:11/B Suluca ADANA

City-State

Adana

Country

Turkey

Phone

+90 322 394 4253

Fax

+90 322 394 4255


Trademarks

BETA   MFC


PDF Download You need to Login to download the search results.

Company Profile

(BETA )TRANSFORMATÖR ELEKTROMEKANİK SANAYİ VE TİCARET A.Ş “Quality solutions offered for your needs by productive manufacturing process” Beta Transformer, that offers quality solutions for the needs of energy sector by productive manufacturing process, provides service in Adana Hacı Sabancı Organized Industry Zone with a total of 24.000 m2 area, 9.000 m2 indoors and 15.000 m2 outdoors. Beta Transformer, setting target of specializing in Electrical - Electromechanical since its establishment date, is a powerful and respected technology company being active in “Power, Distribution, Dry Type (Cast - Resin) and Special Type Transformers”. BETA realizes its main activity area as Oil Type Distribution Transformer, Power Transformer and Dry Type (Cast - Resin) Transformer production, according to IEC 76, BS 171, ANSI, ISO 9001, CE, TSE, TS 267 quality, production and design standards with a monthly production capacity of 750 transformers.

Product Image

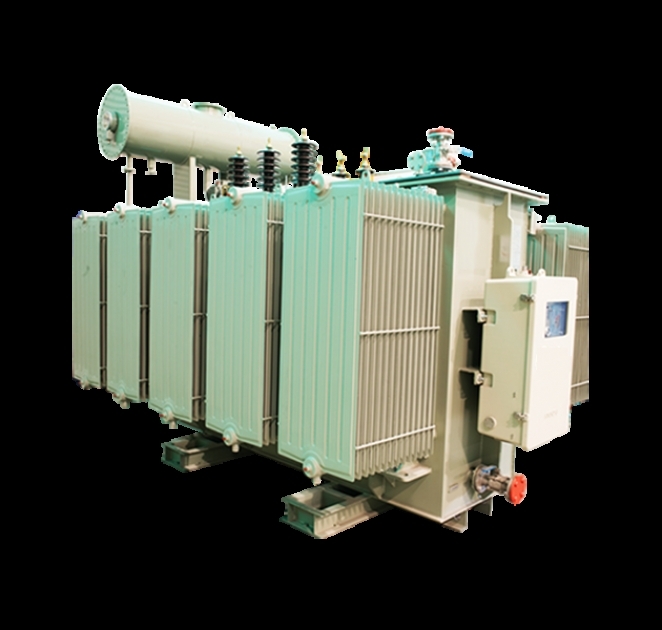

SPECIAL TYPE TRANSFORMER

Produced within a power range between 10 – 100.000 kVA , up to 170 kV high voltage level, three phase or single phase, oil immersed, ONAN, ONAF, OFWF, with Off-Load or On-Load Tap Changer, used both external and internal.Dimensions of transformer conservator are determined and designed after several heat calculations of the oil stored in expansion tank and oil level changes by heat.Being open to atmosphere, oil pressure changes continuously in Conservator Type Transformers due to thermal effects and exchange of air is dehumidified via air breather silicagel.

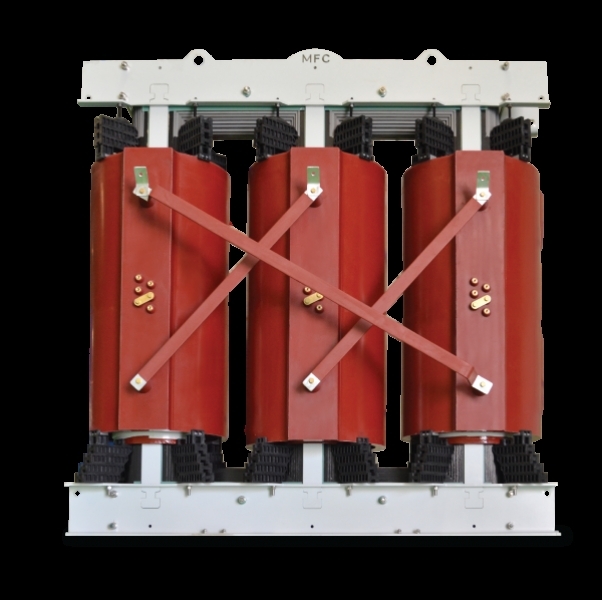

DRY TYPE CAST RESIN TRANSFORMER

Our MFC branded dry type cast resin transformers are being manufactured to serve in to the market with high qualityfrom 100kVA up to 10mVA and 52kV isolation level three or single phase and AN/AF cooling type. Our company, provides dry type cast resin transformers with high quality and performance for various applications to the market. Due to compatibility of special and international standards our transformers are available to use on high altitudes and sea level espacially in hard conditions. In terms of not to flammable and self extinguishing, exempt of position gas contents, low noise level and low electro magnetic emision our transfomers provides environment safety.Cast Resin Type of Transformers are dampproof and also suitable to work in humity and excessive pollution ambience. Cast resin type transformers are ideal to work on  -25 °C and also can be work on  more than %95 humid environment.

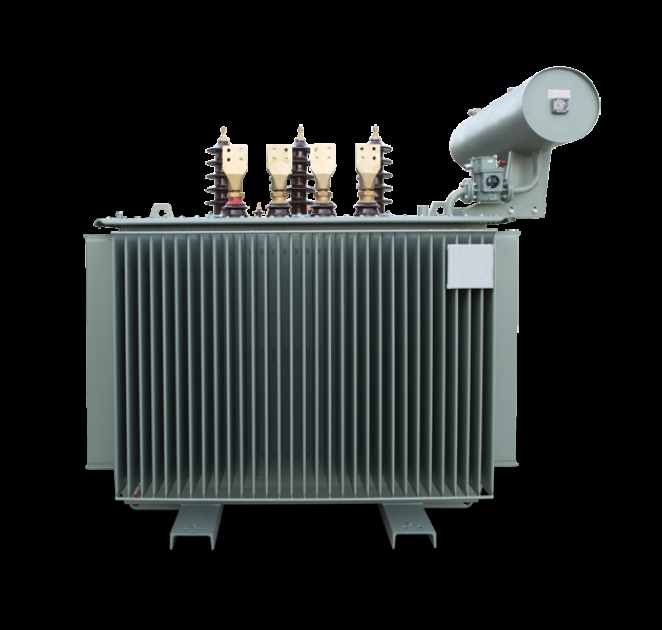

CONSERVATOR TYPE TRANSFORMER

Produced within a power range between 10 – 100.000 kVA , up to 170 kV high voltage level, three phase or single phase, oil immersed, ONAN, ONAF, OFWF, with Off-Load or On-Load Tap Changer, used both external and internal.Dimensions of transformer conservator are determined and designed after several heat calculations of the oil stored in expansion tank and oil level changes by heat.Being open to atmosphere, oil pressure changes continuously in Conservator Type Transformers due to thermal effects and exchange of air is dehumidified via air breather silicagel.

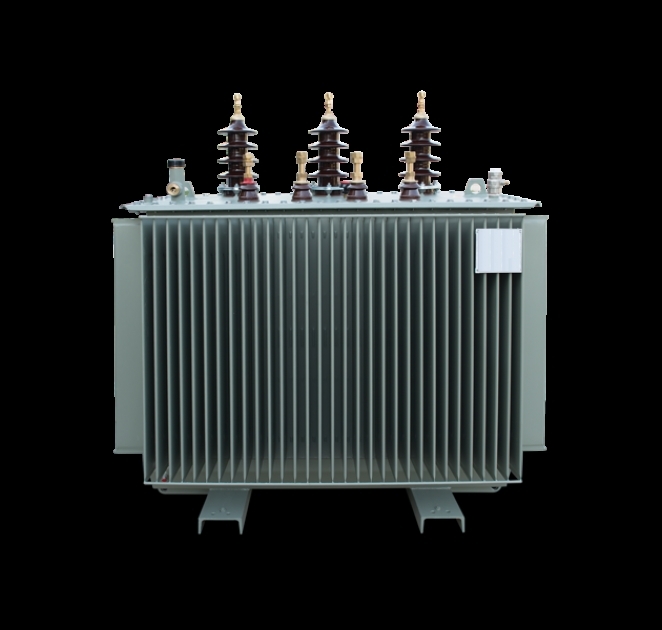

HERMETICALLY SEALED TRANSFORMER

Produced within a power range between 10 – 3.150 kVA, up to 36 kV high voltage level, three phase or single phase, oil immersed, ONAN and/or ONAF, with Off-Load or On-Load Tap Changer, used both external and internal.Being closed to atmosphere, there is no oxygen in Hermetically Sealed Transformers. Thus, aging due to oxidation does not occur and transformer oil will not gather moisture. For this reason, Hermetically Sealed Transformer are more longlasting compared to Conservator Type Transformers.Height of Hermetically Sealed Transformer is lower than Conservator Type Transformer due to lack of conservator. It can be installed in small areas and has advantage of being used in compact transformer centers.

HS Code

# HS Code HS Code Code Description
1 850421 Liquid Dielectric Transformers Having A Power Handling Capacity Not Exceeding 650 Kva
2 850422 Liquid Dielectric Transformers Having A Power Handling Capacity Exceeding 650 Kva But Not Exceeding 10,000 Kva
3 850423 Liquid Dielectric Transformers Having A Power Handling Capacity Exceeding 10,000 Kva
4 850431 Electrical Transformers , Having A Power Handing Capacity Not Exceeding 1 Kva
5 850432 Electrical Transformers , Having A Power Handing Capacity Exceeding 1 Kva But Not Exceeding 16 Kva
6 850433 Electrical Transformers , Having A Power Handing Capacity Exceeding 16 Kva But Not Exceeding 500 Kva
7 850434 Electrical Transformers , Having A Power Handling Capacity Exceeding 500 Kva
