With rapidly changing World and business environment, the previous model has to be adapted to the current needs of the people. In this regard, we have made a multi-model complex structure by linking the verified valve&fitting manufacturing factories in Turkey in one hand and offering a consumer friendly environment to our business partners. We call our clients as our partners since we share with them the same destiny in each project we are in. There are numerous valve&fitting manufacturing plants in Turkey acting mainly local and not having the experience in international market and their requirements.At this point, we have made official agreements with 20+ factories in Turkey for exporting their products with “TVN” brand.This is why we call this organization as “Turkish Valve Network”.With this business model, we are offering many significant advantages to your partners worldwide by below mentioned main aspects; Very wide range of products to be supplied from single source Linked factories reach an unbelievable scale of production capacity by synchronization Monitoring each factories price/quality ratio and delivery terms in order to meet the demand of our partners in a most competitive and rapid way. Verified factories enhances reliability Wide range of certification Keeping the pulse of the valve&fitting industry Inspection, expediting and monitoring of production Flexibility in product diversification and customer oriented production Rapid and smart solutions Satisfactory after sales service

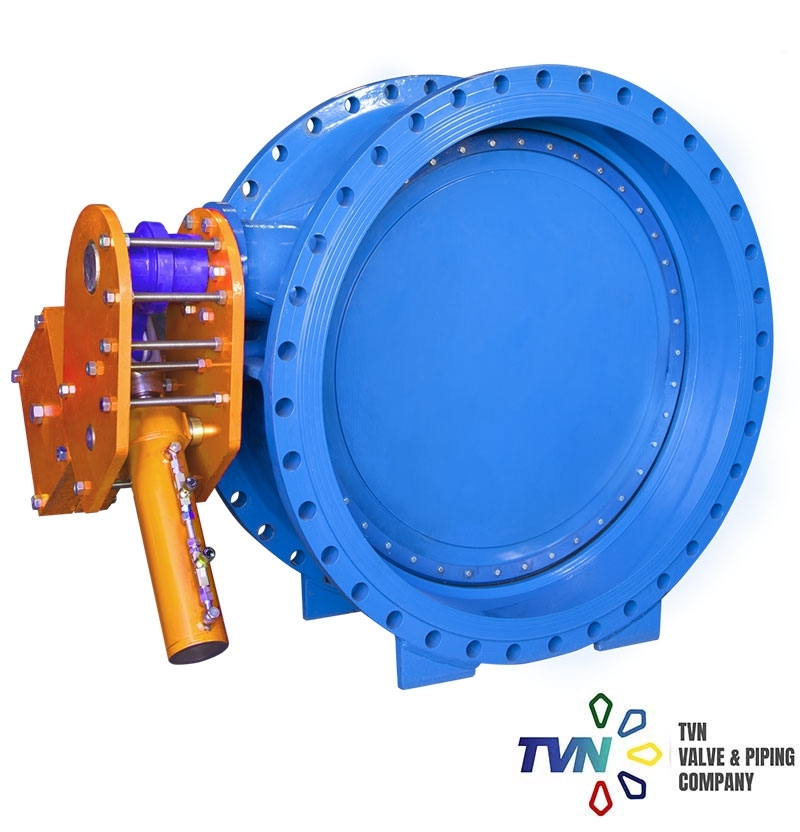

TVN V203 Hydraulic Tilting Check Valve is the non-return valve preferred in pipe networks where faster closure is required and water hammer affects needs to be absorbed. Through the counter lever and weight attached to its shaft via the hydraulic piston, ensures a soft open depending on the speed of the flow and maintains reduced closing times when flow stops. With its disc design where the center is shifted in two axis, this leads to a big improvement on decreasing operation torque values, lowering the friction on disc sealing area and extended service life. Application Range Pumping Stations Water Transmission Lines Tanks Water Treatment Plants PowerStation Cooling Lines Related Products V106 Double Eccentric Butterfly Valve V151 Resilient Seated Gate Valve V251 Dismantling Joint Hydraulic Tilting Check Valve Product Features GGG40/50 Ductile Iron Body & Disc allows high impact and stretching resistance Double Eccentric / Double Offset Disc Design Resilient Seated Type (Metal seated type optional) Disc sealing ring EPDM as default. NBR or VITON options are available Block molded solid/one-piece T-shaped disc sealing ring extends drop-tight sealing life time The open/close speed can be adjusted by opening and closing the valve located on the hydraulic piston. Counter Lever & Weight position can be replaced on both sides. Two counter lever option is also available upon request. Possible to install on horizontal and vertical pipelines with varied flow directions. It is necessary to mention the lever positioning requirements according to your project in order to arrange the lever side and position during production. Easy to replace disc sealing ring without dismantling the valve from the pipeline and without dismantling the disc from the valve itself just by taking out the retaining ring through its bolts. It is easy to replace the disc sealing ring without any additional equipment’s SS308/316 grade stainless steel welding seat on the body is manufactured through automatic welding machines and microfinished precise milling operation. When disc is fully closed, disc sealing ring applies equal pressure on every point on the welding seat. Drop-tight closure Triple O-ring feature on both shafts ensures high sealing Shafts are equipped with bronze bushings having high corrosion resistance Ensures minimized pressure loss and increased energy efficiency with double shaft design Low torque requirements during operation Easy to install on the line, light weight and occupies less space Full coating on the body and disc internally & externally with an average of 250 microns. Higher coating thicknesses are available when required. WRAS approved coating available upon request which meets hygienic requirements for potable water applications • Maintenance free design For proper installation, direction arrow on the body should be considered. Balanced positioned lifting holes on the body ease transportation and installation Hydrostatic test pressure for seat: PN x 1.1 , for shell: PN x 1.5 according to EN 12266-1.

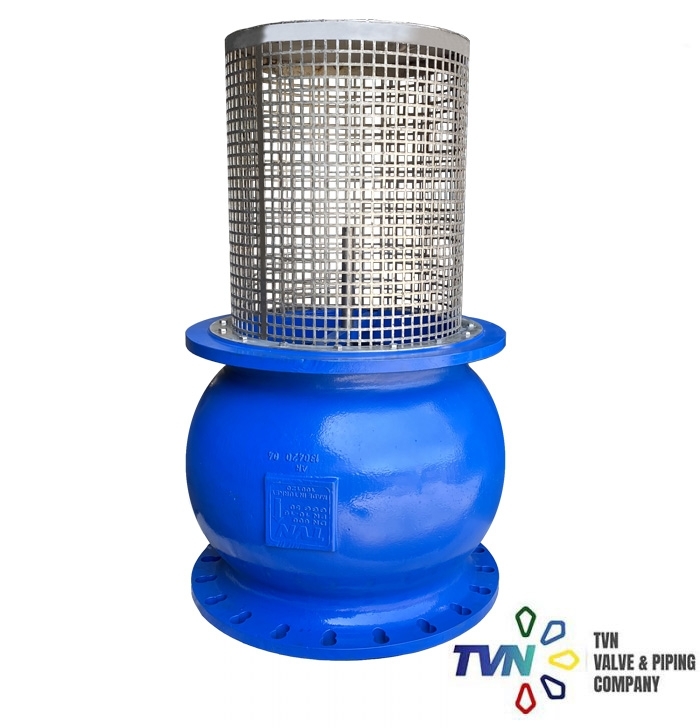

V451 Foot Valve with Check Valve is designed to be installed on the suction side of a pump. The purpose of a valve is to maintain pump prime between pumping cycles. A strainer prevents debris from entering the piping system. They are designed to minimize head loss and optimize pumping efficiency. Application Range Reservoir Lakes Dam Sites Seawater Applications Suction Lines Related Products V851 Y-Strainer V852 Basket Strainer V651 Rubber Expansion Joint V151 Gate Valve V106 Butterfly Valve Foot Valve with Check Valve Product Features Spring loaded foot valve for pumping stations, water treatment and supply, networks clean water distribution, irrigation, and re protection networks. They are an inexpensive way to maintain prime on a single centrifugal pump. It is designed with a 10% larger flow area (including heavy stainless steel strainer) than the pipe size to insure minimal head loss. The valve shall be globe style, flanged with resilient seal against metal; provide full flow equal to valve size and shut-off silently. A heavy gauge 360 degree, stainless steel strainer (not plated steel) having a flow-thru area of at least three times that of the foot valve flow area shall be connected to the outside diameter of the inlet flange. The foot valve provides years of trouble free operation at low or high pressures. Full Flow Foot Valves designed to have the high quality, long wearing construction necessary for valves that are continually submerged in a wet well and not readily accessible for inspection or repair. The seal cannot be damaged from compression and pump prime is always assured. A 360 degree stainless steel strainer is provided standard with three times flow-through area of the foot valve size. Hydrostatic test pressure for seat: PN x 1.1 , for shell: PN x 1.5 according to EN 12266-1.

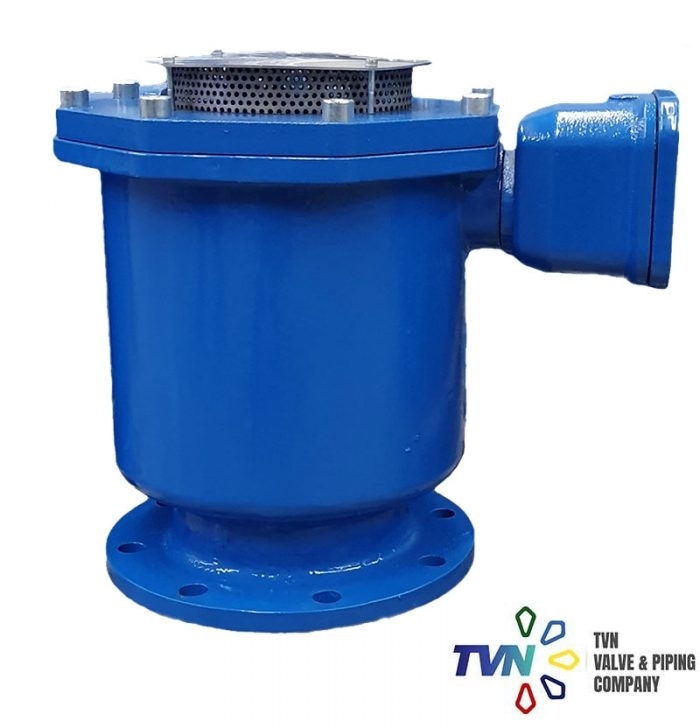

TVN V301 Dynamic Triple Function Air Release Valve is a unique valve operating without a float, utilizing the rolling diaphragm principle. This unique structure allows the dynamic valves to discharge air from the water system in a controlled and gradual man- ner, preventing slam and local up-surges. When vacuum occurs, the valves fast reaction will draw in large volumes of air into the water system, impeding down-surges and, consequently, all pressure surges in the line. The valves are normally closed when the line is not operating, thus preventing the infiltration of foreign particles and insects into the water system. Air Release Valve Application Range Water transmission Water distribution Pump suction line Peaks and bottom points Next to by-pass valve Related Products V151 Gate Valve Resilient Seated V106 Butterfly Valve Flanged V251 Dismantling Joint Air Release Valve Product Features Float parts made of polyethylene, increase the corrosion resistance, hence increases service life. The polyethylene floats gives advantage for easier replacement. Ductile iron body increases the resistance against impacts. It is necessary to use air release valves on the peak points of the pipelines, in order to maintain the full flow of the water. If the air vacuum via air release valve is less than the discharged water amount, the pipeline will face the risk of torsion. Fully coated body and bonnet, meets the hygienic requirements of the potable water networks. (WRAS coating optional) Double orifice air release valve is installed on the pipe by a flange, release the air received from its outlet through the orifices located above the float parts. When the air release function is completed, the floats travel upper part with the water force and close the orifice outlet, thus preventing the leakage of water. Flange connections according to EN1092-2/ISO 7005-2. Working pressure range from 0.2 to 16 bar. Hydrostatic test pressure for seat: PN x 1.1 , for shell: PN x 1.5 according to EN 12266-1.

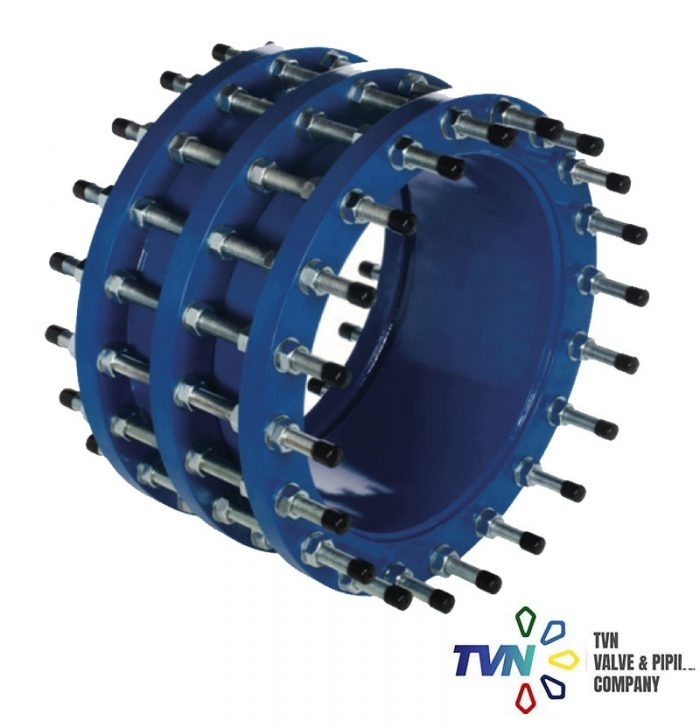

V251 Full Tie-Rod Dismantling Joint is the crucial elements for the installation and dismantling of valves and other fittings on the pipelines. The self-restrained function enables tight sealing and stays fixed on the lines with prolonged times. Without a disman- tling joint offering longitudinal adjustment, it is almost impossible to insert a valve exactly into a pipe section. V251 dismantling joint with full-length threaded tie-rods ensures complete restraint and a leak-free operation. Thanks to this adjustability of the dismantling joint, the valve can be fitted next to the dismantling joint, and the dismantling joint can be to set to the exact length required prior to being securely connected to flanges. Application Range Potable water applications Water treatment and distribution systems Mining industry Shipbuilding and drilling facilities Food and chemical enterprises Oil and gas processes Related Products V151 Gate Valve V106 Double Eccentric Butter fly Valve V202 Tilting Check Valve Full Tie-Rod Dismantling Joint Product Features The heavy model V251 is equipped with 3 flanges, is the perfect solution for all standard and non-standard applications. Larger sizes and higher pressure ratings up to 40 bar are always possible depending on customer requirements. Only high-quality EPDM or NBR qualities for water, drinking water and sewage are used for the gasket. These guarantee a clean seal for years and at the same time the movement of the dismantling joint. It is easy to install and remove thanks to the standard longitudinal adjustability of ± 25 mm and thus offers perfect support during the installation and removal of valves. High-quality FBE coatings protect TVN dismantling joints from long term corrosion. Ductile iron GGG-40/50 body galvanized 8.8 bolts, nuts and washers. The bolts, nuts and washers can be chosen as AISI 304 or AISI 316 stainless steel. Certain types of dismantling joints are also suitable for use without restraint in flexible pipelines The ductile iron body has high resistance to the high tension stress which can occur at the pipelines. Connection flanges to any standard are available upon customer request. Larger nominal sizes, higher pressure ratings and non-standard build lengths are also available on request. Hydrostatic test pressure for shell: PN x 1.5 according to EN 12266-1.

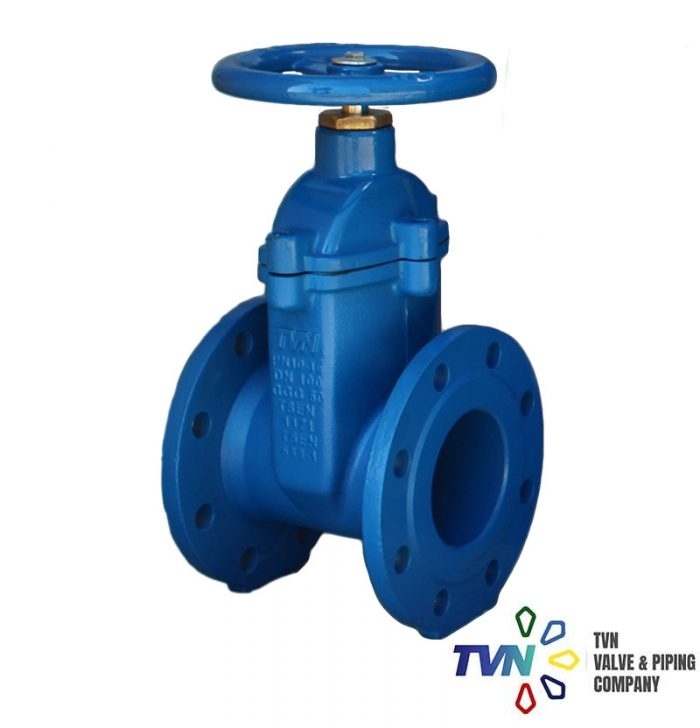

TVN V151 Resilient Seated Gate Valve is designed to last long years of operation in many conditions. With its bolted bonnet structure, EPDM covered wedge and hygienic coating, ready to meet the demand for potable water & sewage applications. Application Range Potable water applications Waste water Water treatment and distribution systems Mining industry Shipbuilding and drilling facilities Chemical and petrochemical plants Food and chemical enterprises Oil and gas processes HVAC Related Products V251 Dismantling Joint V991 Surface Box V993 Extension Spindle V851 Y-Strainer V301 Air Release Valve V651 Rubber Expansion Joint V201 Swing Check Valve Resilient Seated Gate Valve Product Features GGG40/50 Ductile Iron Body & Disc allows high impact and streching resistance With Full Bore design, ensures minimized pressure loss and increased energy efficiency Maintenance free valve design Fully EPDM vulcanised wedge maintains full stop of flow and can absorb smaller particules in the flow. (NBR coated wedge is optional) Stainless steel stem with threads for high strength Maintenance-free and corrosion-resistant multi stem O-rings ensures higher durability Brass wedge nut provides fixation of the stem and low torques. With isolated bonnet nuts, no risk of corrosion Bidirectional use. Possible to install on horizontal and vertical pipelines with varied flow directions Fixed wedge structures prevents vibration With precise machined stem, ensures low torque requirements during operation Full coating on the body and disc internally & externally with an average of 250 microns. Higher coating thicknesses are available when required. WRAS approved coating available upon request which meets hygienic requirements for potable water applications For big size valves, balanced positioned lifting holes on the body ease transportation and installation Suitable for vacuum conditions Suitable for shut-off and isolation purposes. Not suitable for regulation purposes Electrical actuator connection is done with an intermediate top flange arrangement Suitable to use with above-underground applications. Can be operated with handwheel, gearbox, actuator and spindle. Hydrostatic test pressure for seat: PN x 1.1 , for shell: PN x 1.5 according to EN 12266-1.

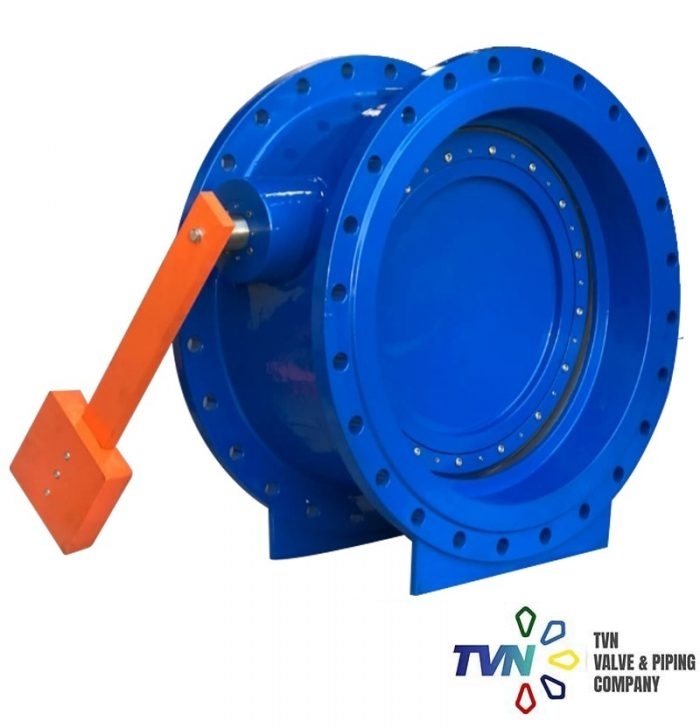

TVN V202 Tilting Check Valve is the non-return valve preferred in pipe networks where faster closure is required. Through the counter lever and weight attached to its shaft, ensures a soft open depending on the speed of the flow and maintains reduced closing times when flow stops. With its disc design where the center is shifted in two axis, this leads to a big improvement on decreasing operation torque values, lowering the friction on disc sealing area and extended service life. Application Range Water treatment and distribution systems Mining industry Shipbuilding and drilling facilities Chemical and petrochemical plants Food and chemical enterprises Oil and gas processes Fire extinguishing systems HVAC systems Related Products V106 Double Eccentric Butterfly Valve V151 Gate Valve V251 Dismantling Joint V702 Y-Strainer Tilting Check Valve Product Features GGG40/50 Ductile Iron Body & Disc allows high impact and streching resistance Double Eccentric / Double Offset Disc Design Resilient Seated Type (Metal seated type optional) Disc sealing ring EPDM as default. NBR or VITON options are available Block moulded solid/one-piece T-shaped disc sealing ring extends drop-tight sealing life time The open/close speed can be adjusted by modifying the counter lever length and weight. For adjustable shut off speed, TVN V203 Tilting check valve with hydraulic damper type is advised. With extended shafts located on both sides of the body, lever position can be replaced on both sides. Two counter lever option is also available upon request. Possible to install on horizontal and vertical pipelines with varied flow directions. It is necessary to mention the lever positioning requirements according to your project in order to arrange the lever side and position during prodution. Easy to replace disc sealing ring without dismantling the valve from the pipeline and without dismantling the disc from the valve itself just by taking out the retaining ring through its bolts. It is easy to replace the disc sealing ring without any additional equipments SS308/316 grade stainless steel welding seat on the body is manufactured through automatic welding machines and microfinished precise milling operation. When disc is fully closed, disc sealing ring applies equal pressure on every point on the welding seat. Drop-tight closure Triple O-ring feature on both shafts ensures high sealing Shafts are equipped with bronze bushings having high corrosion resistance Ensures minimized pressure loss and increased energy efficiency with double shaft design Low torque requirements during operation Easy to install on the line, light weight and occupies less space Full coating on the body and disc internally & externally with an average of 250 microns. Higher coating thicknesses are available when required. WRAS approved coating available upon request which meets hygienic requirements for potable water applications Maintenance free design For proper installation, direction arrow on the body should be considered. Balanced positioned lifting holes on the body ease transportation and installation Hydrostatic test pressure for seat: PN x 1.1 , for shell: PN x 1.5 according to EN 12266-1.

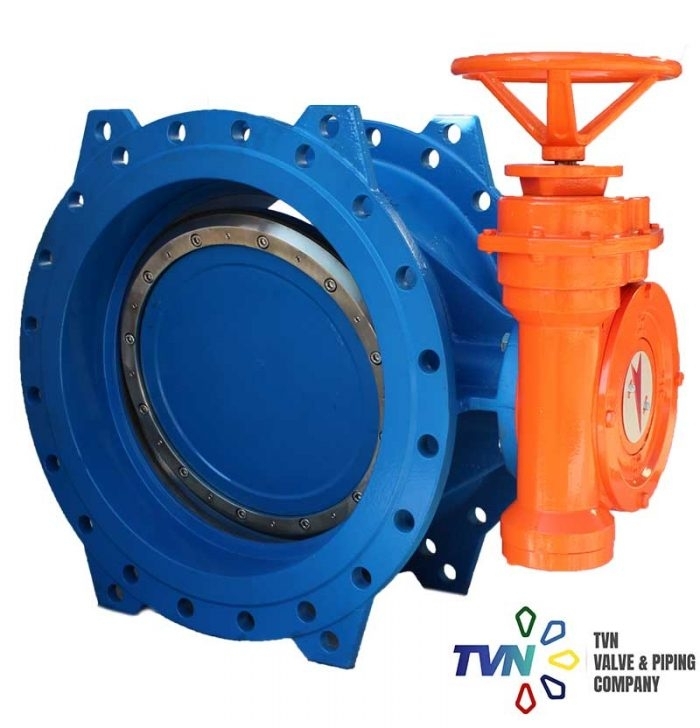

TVN V106 Double Eccentric Resilient Seated Butterfly Valve is the mainstream product type preferred in water networks. Through its disc design where the center is shifted in two axis, this leads to a big improvement on decreasing operation torque values, lowering the friction on disc sealing area and extended service life. Double Eccentric Butterfly Valve Product Features GGG40/50 Ductile Iron Body & Disc allows high impact and streching resistance Double Eccentric / Double Offset Disc Design Resilient Seated Type Disc sealing ring EPDM as default. NBR or VITON options are available Block moulded solid/one-piece T-shaped disc sealing ring extends drop-tight sealing life time Easy to replace disc sealing ring without dismantling the valve from the pipeline and without dismantling the disc from the valve itself just by taking out the retaining ring through its bolts. Iit is easy to replace the disc sealing ring without any additional equipments SS308/316 grade stainless steel welding seat on the body is manufactured through automatic welding machines and microfinished precise milling operation. When disc is fully closed, disc sealing ring applies equal pressure on every point on the welding seat. Drop-tight closure Double O-ring feature on both shafts ensures high sealing Shafts are equipped with bronze bushings having high corrosion resistance Ensures minimized pressure loss and increased energy efficiency with double shaft design With the o-rings on the bearing bushings, disc pin holes are protected against corrosion. Dry shaft up to request. Easy to operate with self locking gearbox equipped with mechanical indicator Low torque requirements during operation Easy to install on the line, light weight and occupies less space Full coating on the body and disc internally & externally with an average of 250 microns. Higher coating thicknesses are available when required. WRAS approved coating available upon request which meets hygienic requirements for potable water applications Maintenance free design for the valve and gearbox Default operation is gearbox with ISO top flange ready to connect electrical actuator. Pneumatic actuators can be installed directly on the top flange of the valve itself. V106 Double Eccentric Butterfly valves are deisgned bi-directional according to EN1074-2. For proper installation, direction arrow on the body should be considered. Operation with extended spindle version is also available Balanced positioned lifting holes on the body ease transportation and installation. Hydrostatic test pressure for seat: PN x 1.1 , for shell: PN x 1.5 according to EN 12266-1.
| # | HS Code | HS Code Description |
|---|---|---|
| 1 | 730711 | Pipe Or Tube Fittings, Cast, Of Nonmalleable Iron |
| 2 | 848130 | Check Valves |
| 3 | 848180 | Taps, Cocks, Valves And Similar Appliances For Pipes, Vats Or The Like, Including Thermostatically Controlled Valves, |
